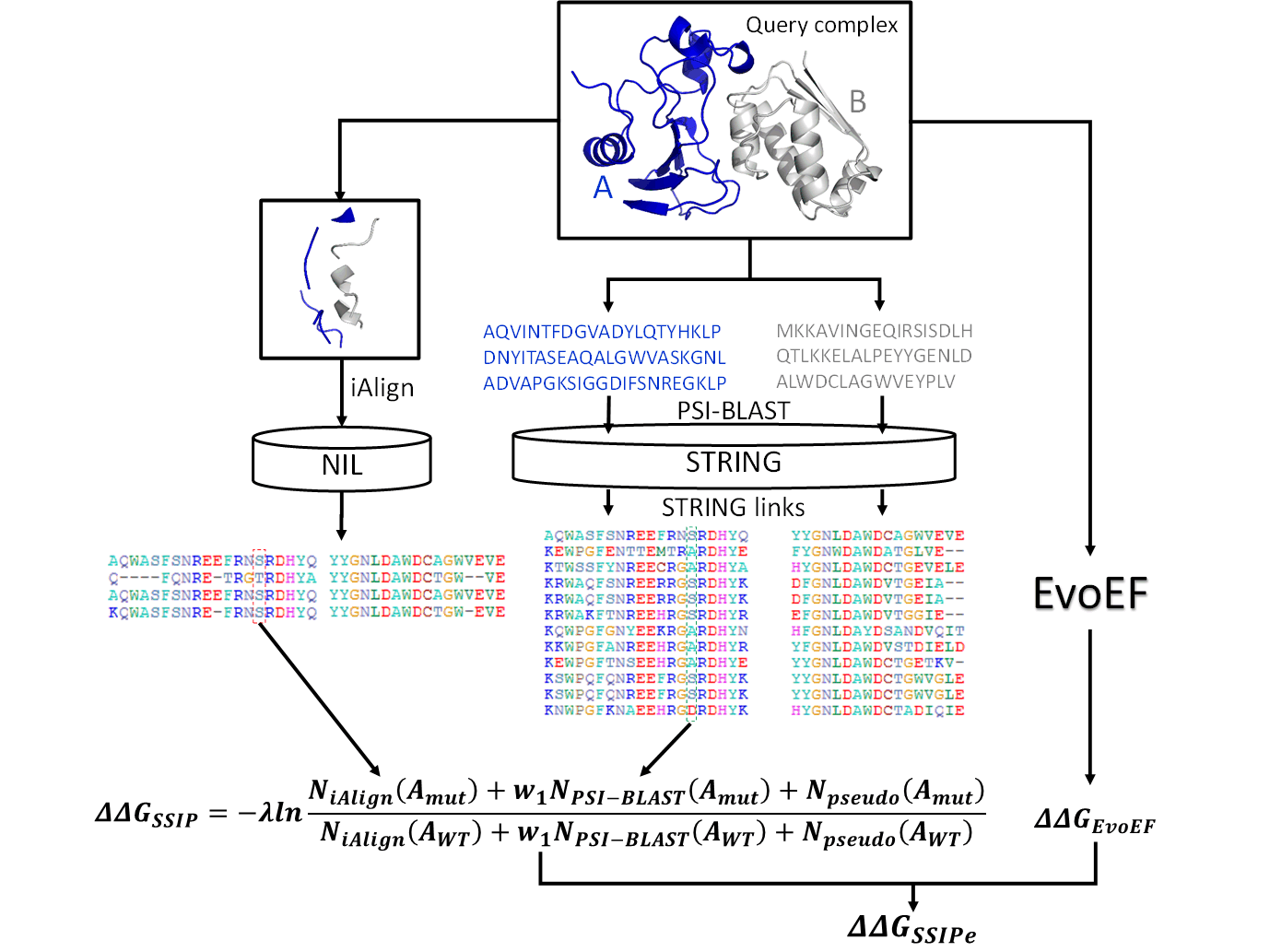

SSIPe is a program to predict protein-protein binding affinity changes (ΔΔG_bind) upon mutations of residues at protein-protein interface. It works in the following procedure: (1) it extracts the protein-protein interface of the query complex and use iAlign to identity interface structure homologs from the non-redundant interface library (NIL) to build interface structural profile; (2) it splits the query complex into two sequences and identify sequence homologs from the STRING database individually using PSI-BLAST and then builds the interface sequence profile using STRING linking score; (3) the two profiles are combined to compute the profile conservation score (ΔΔG_SSIP); (4) the physics-based ΔΔG_EvoEF is evaluated using the EvoEF program. (5) ΔΔG_SSIP and ΔΔG_EvoEF are combined to calculate the final ΔΔG_SSIPe score.

QA22D;
HA18F,QA22D;
HA18F,MB20A;

• One mutation set per line and each line ends in semicolon.
• If one mutation set has more than one mutation, separate them by commas.
• In the above example, the first line represents a single mutation on Chain A where Glu22 is mutated to Asp. The second line represents a double mutation on the same chain: His18 on chain A is mutated to Phe and Glu22 on chain A is mutated to Asp. The third line represents a double mutation on different chains: His18 on chain A is mutated to Phe and Met20 on chain B is mutated to Ala.

• Binding affinity change upon mutations
  The binding affinity between two proteins is measured by Gibbs free energy change ΔG_bind=G_complex-G_monomers when two monomers form a complex. The more negative ΔG is, the stronger the binding is. The effect of mutation on binding affinity is measured by different of free energy change between mutant and wild type: ΔΔG_{bind,wt→mut} = ΔG_bind,mut - ΔG_bind,wt. In SSIPe, a favorable mutation is defined as a mutation that has ΔΔG < -0.5 kcal mol^-1, while an unfavorable mutation is defined as a mutation that has ΔΔG > 0.5 kcal mol^-1; otherwise neutral (i.e., 0.5 kcal mol^-1 ≤ ΔΔG ≤ 0.5 kcal mol^-1).


• Structure-based interface MSA by iAlign from NIL
  SSIPe uses iAlign to do pairwise alignment of the interface structure of query complex to a set of non-redundant protein-protein interface structures (NIL) built from the PIFACE database. interface alignment, a pair of interface sequence profile is constructed.


• Sequence-based interface MSA by PSI-BLAST from STRING
  SSIPe also uses PSI-BLAST to do pairwise alignment of the two monomer protein sequences to the STRING sequence database, and then the interface alignment is extracted from the whole sequence alignment based on protein-protein interface defined by iAlign.



• Interface similarity cutoff: The default cutoff is IS-score = 0.5.
  IS-score cutoff: IS-score should be in [0,1], with a higher value indicating a higher interface structural similarity. Based on our benchmark test, IS-score cutoff in the range of [0.45, 0.55] gives good prediction performance, and a value of 0.5 gives the best prediction performance. To avoid using IS-score cutoff incorrectly, the real cutoff for calculation is resticted into [0.45, 0.55] if the value is not in this range. Otherwise, the user-provided value is used for prediction.


• Forcefield to use: The SSIPe server provides three forcefield engines for ΔΔG_bind prediction.
  SSIPE (default): SSIPe by default combines ΔΔG_SSIP derived from structure and sequence alignment and ΔΔG_EvoEF calculated by physics-based energy function EvoEF, which exhibits better ΔΔG prediction than using SSIP or EvoEF only.
  SSIP: only use structure and sequence-based interface profiles. This is important when the user knows that a mutation can cause big shift of backbone conformation, where the physical energy function may result in big prediction errors.
  EvoEF: only use physcial energy function EvoEF. Compared with SSIPE and SSIP, EvoEF doesn't search structure and sequence homologs from large databases and has the fastest speed. In addition, it will generate all the mutant models using the user-provided initial complex structure. User can download the standalone EvoEF program at https://zhanglab.dcmb.med.umich.edu/EvoEF.
